Network IP Phone (NIP)

Watching your beloved kids, Family members or Made servant's activity in your home from any where in the world and VDO calling them for any instruction, update or emergency. Multifunctional features such as ::

* Network VDO Phone * IP Camera * Alarm * Recorder

Main Features:

  • NIP is a multifunctional product including video call function, remote monitor function, local recording function and wireless alarm function, which can satisfies your different needs.
  • It introduces advanced Cloudlink P2P network transmission technology, so that it can switch bitrates intelligently and adapt to any network environment.
  • Built-in 3C smart card, it is so easy to realize remote monitor and video call.
  • It introduces 3Dvoice sound engine technology, which can thoroughly improve the quality of network sound call.
  • H.264 Main Profile compression, which can make clearer and smoother image.
  • It has intuitive and user-friendly operation interface, you can start it without training.
  • It can support these two APP programs---IOS and Android, through APP program, you can care family anytime and anywhere.
  • Can add extra sensors ( wired or wireless Smoke, gas, fire, CO, Strobe Alarm etc).
  • Functions:

    3C smart card is a cloud communication intelligent card that we specially design for NIP. It can transmit bulky data among different LANS. Through 3C smart card, you don’t need domain name or set port in router,you can easily realize remote monitor and video call,It won’t charge you any fees except flows generated by network.

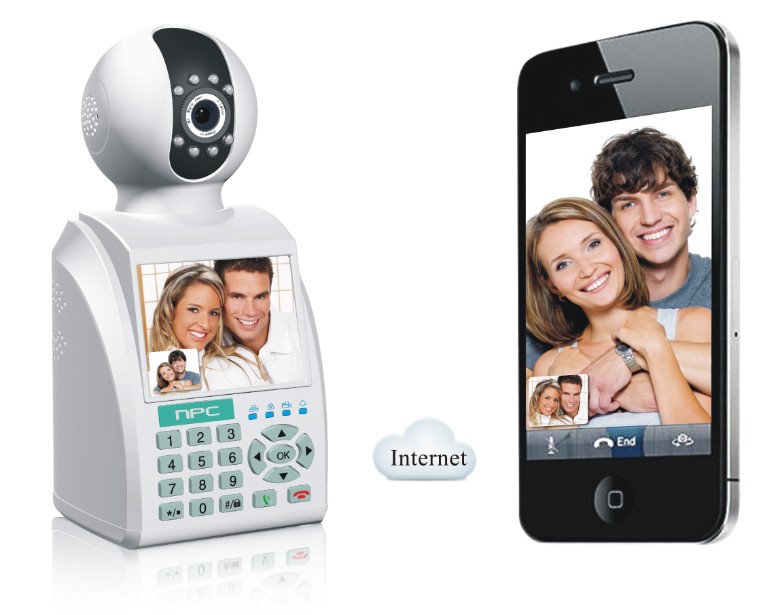

  • After install a free APP offered by us in IOS or Andriod device, then start APP program, you can directly dial NIP’s 3C number to make free video call with your family or friend.

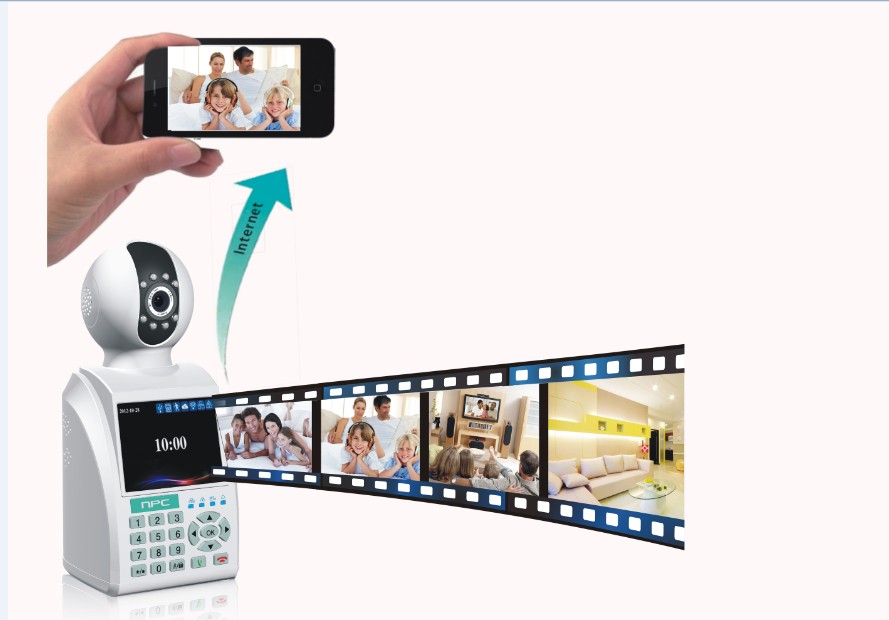

  • Through APP program to remote control NIP, you also can know everything happen at home, and care family always.

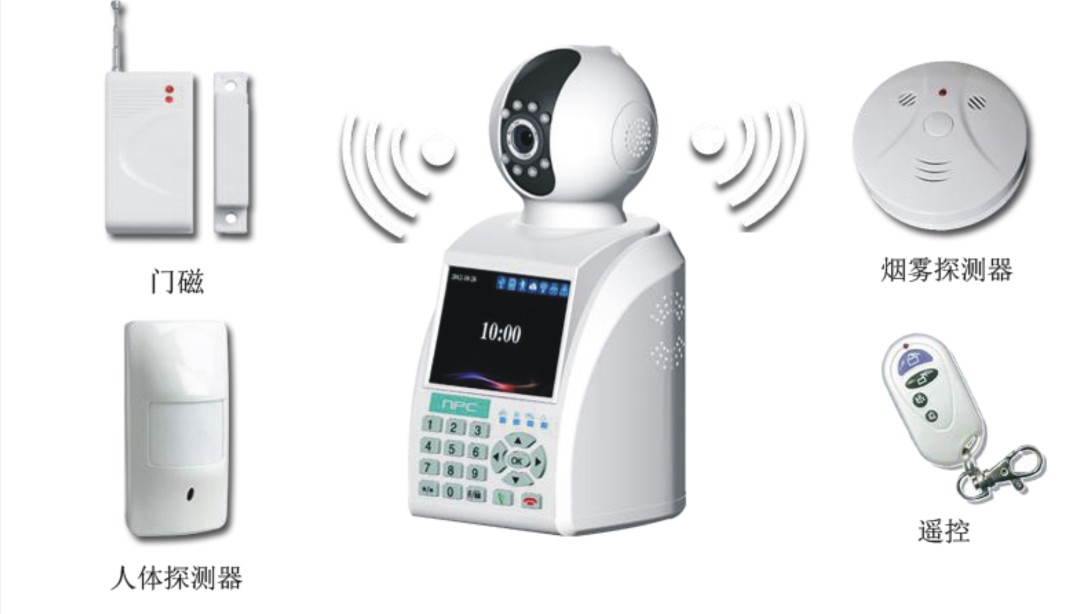

  • NIP can learn code to match the wireless detectors such as smoke detector,remote control,and then construct a wireless alarm system.

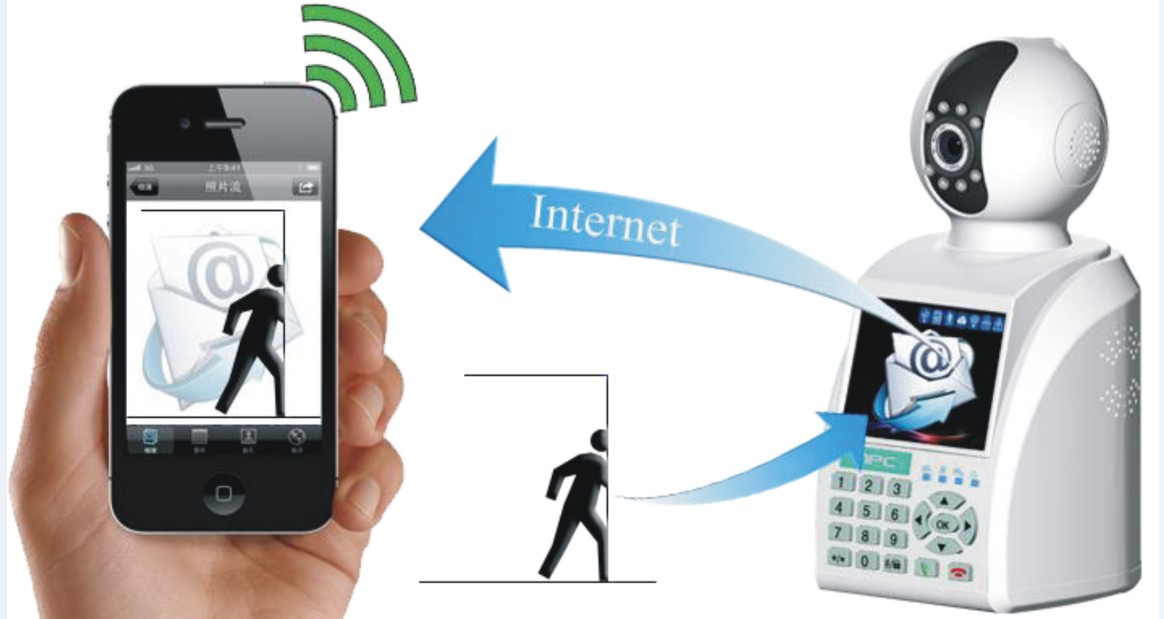

  • If no one at home, NIP can help to monitor your house. If someone break into your house or accidently catch fire, NIP will alarm immediately, at the same time it will captures pictures and send the pictures to you by e-mail, so that you can know what happen at home
  • NIP can make continual recording in 24 hours, it can record everything happen at home, it won’t miss any wonderful pictures.
  • Specifications:

  • System Main processor High Performance Embedded Microprocessor Hi3512
  • Operating system Embedded Linux OS
  • Video Image sensor 30W pixels CMOS
  • Video Compression Format H.264
  • Signal System PAL/NTSC
  • Video Resolution VGA:640*480
  • Recording Speed VGA@ 25 fps or 30 fps
  • Motion Detection YES
  • Minimum illumination 0.1LUX/F1.2
  • Video call YES
  • IR YES
  • Video output BT656/3.5 inch TFT LCD
  • Audio Compression G.711A
  • Audio Input Built-in microphone or an external headset
  • Audio Output Built-in speakers or an external headset
  • Recording Manager Recording Mode Manual/Timer/Motion / Schedule
  • Video Storage USB、Micro SD
  • Alarm Alarm Input Learning wireless sensor alarm input
  • Alarm triggered Speakers alarm、Alarm recording、Capture、Email
  • Others Ethernet Interface RJ45 100M / 1000M Base-TX
  • USB 1* USB 2.0
  • TF 1*TF
  • Wifi YES,802.11 b/g/n
  • Headset One 3.5 headphone jack
  • Power Supply DC 12V 2A
  • PTZ Control Built-in horizontal and vertical control motor
  • Power Consumption 2W
  • Working Temperature 0℃-+55℃
  • Working Humidity 10%-90%
  • Dimensions (mm) 109*117*213mm
  • Weight 800g
  • Installation Rack mount
